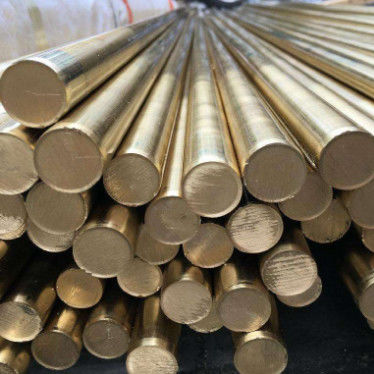

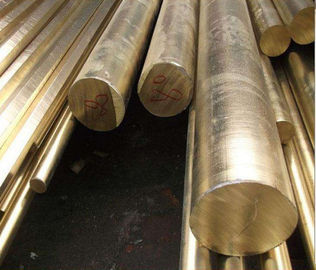

Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod

China Shanghai Tianshen Copper Group Co.Ltd certification
China Shanghai Tianshen Copper Group Co.Ltd certification
I'm Online Chat Now

Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod

Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod
Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod

Large Image :  Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod

Product Details:

Place of Origin: China
Brand Name: TSTY
Certification: ISO 9000
Model Number: Accordingly

Payment & Shipping Terms:

Minimum Order Quantity: 2 Ton
Price: USD/EURO/RMB
Packaging Details: Standard export package
Delivery Time: 3,000 MT/per month
Supply Ability: 2-4Weeks
Detailed Product Description
Name: Copper Alloy C36000 C3604 Brass Round Bar Material: Brass
Payment Term: FOB,CIF,CNF,EXW Color: Yellow
Origanl Place: Zhejiang, China Type: Continuous Cast Bar Or Extruded Bar
Dimension: Customized Shape: Round, Hexagon Or Customized
High Light:

solid brass rod

,

brass square bar

Item Brass Rod/bar EN CW617N
Composition as below table
Standard ASTM,AISI,BS,JIS,GB,etc
Type Continuous or Extruded
OEM acceptance Yes, customized composition and dimension
is accepted
Shape Solid or hollow
Round, flat, square, hexagonal, rectangular,etc
Dimension Round bar:
Diameter for continuous casted rod: 7-150 mm
Diameter for extruded rod: 3-70 mm
Length: customized
Dimension for rods of Other shapes can be customized.
Finish Mill, polished, bright or as requested
Process Horizonal continuous casting, Extrusion
Inspection
Equipements
Chemical composition analysis: Spectrometer
Mechenic property test: Hardness, tensile strength, Elongation,Straightness
Application 1). Charging auto parts
2) Connectors
3). Marine pumps
4). Bushing
5).Electrical conductors
6) Cummunication
7) Couplings, plumbing parts or sanitary ware parts,etc.
8). Military
Advantages 1) Good mechanical properties,
2) Strong corrosion resistance,
3) Strict dimension control,
4) High intensity,
5) Great machining performance,
6) Hot Forging performance
MOQ 500KG-3000KG
Sampe requested Yes
Price Term Ex-works, FOB,CIF, etc



Chemical Composition
Alloy Grade Cu Pb Al Fe(max) Sn Zn Impurity Total
HPb63-3 62.0~65.0 2.4~3.0 - 0.1 - REM 0.75
HPb63-0.1 61.5~63.5 0.05~0.3 - 0.15 - REM 0.5
HPb62-2 60.0~63.0 1.5~2.5 - 0.15 - REM 0.65
HPb60-3 58.0~61.0 2.5~3.5 - 0.3 0.3 REM 0.8
Hpb59-1 57.0~60.0 0.8~1.9 - 0.5 - REM 1.0
Hpb58-3 57.0~59.0 2.5~3.5 - 0.5 0.5 REM 1.0
Hpb57-4 56.0~58.0 3.5~4.5 - 0.5 0.5 REM 1.2
C3601 59.0~63.0 1.8~3.7 - 0.3 Fe+Sn:0.5 REM -
C3602 59.0~63.0 1.8~3.7 - 0.5 Fe+Sn:1.0 REM -
C3603 57.0~61.0 1.8~3.7 - 0.35 Fe+Sn:0.6 REM -
C3604 57.0~61.0 1.8~3.7 - 0.5 Fe+Sn:1.0 REM -
C3605 56.0~60.0 3.5~4.5 - 0.5 Fe+Sn:1.0 REM -
CW602N 61.0~63.0 1.7~2.8 0.05 0.1 0.1 REM Ni 0.3
others total 0.2
CW614N 57.0~59.0 2.5~3.5 0.05 0.3 0.3 REM Ni 0.3
others total 0.2
CW617N 57.0~59.0 1.6~2.5 0.05 0.3 0.3 REM Ni 0.3
others total 0.2
C36000 60.0~63.0 2.5~3.0 - 0.35 - REM -



Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod 0

Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod 1

Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod 2

Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod 3

Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod 4Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod 5Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod 6Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod 7Copper Alloy Brass Round Bar C36000 C3604 CW617N Yellow Copper Round Rod 8
